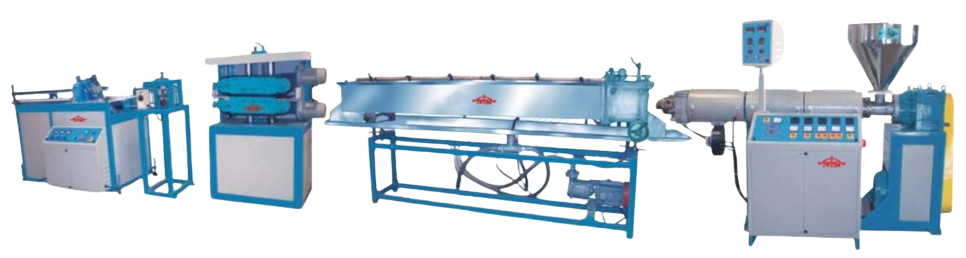

| MODELS | TCP-50 | TCP-65 | TCP-75 | TCP-90 | TCP-100 | |
| Screw Diameter | mm | 50 | 65 | 75 | 90 | 100 |
| L/D Ratio | – | 24:1 | 24:1 | 24:1 | 24:1 | 24:1 |
| Main Motor | KW | 9.3 | 15 | 22.0 | 30 | 37.0 |
| *Output | Kg./Hr. | 24 -35 | 30-60 | 40-80 | 100-125 | 130-150 |
| Pipe O.D. Min | mm | 12 | 12 | 19 | 50 | 63 |
| Pipe O.D. Max. | mm | 32 | 50 | 110 | 150 | 150 |
High speed or heater cooler mixer will be required with above plants for making PVC compound for feeding in the pipe plant Extruder.

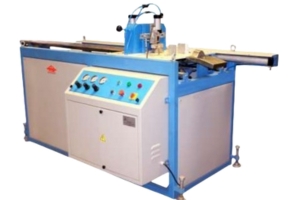

Fully Automatic Pipe Cutter
- Movement through pneumatic cylinder for smooth Operation.
- Optional Chamfering facility for Planetary cutter.

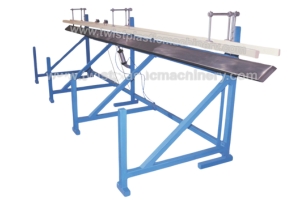

Pipe / Profile Tilting Unit
- Automatic pneumatic operated pipe tilting and stacking unit with digital counter
- Plunger type and planetary type.
- Long life cutter for smooth and clean cut.
- Adjustable pneumatic clamping force for different thickness of pipes.

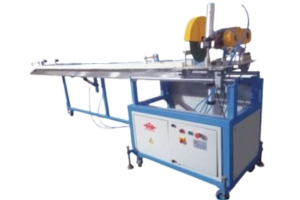

Compact Automatic Pipe Cutter
- Semi (Compact) auto cutter for conduit & casing capping.
