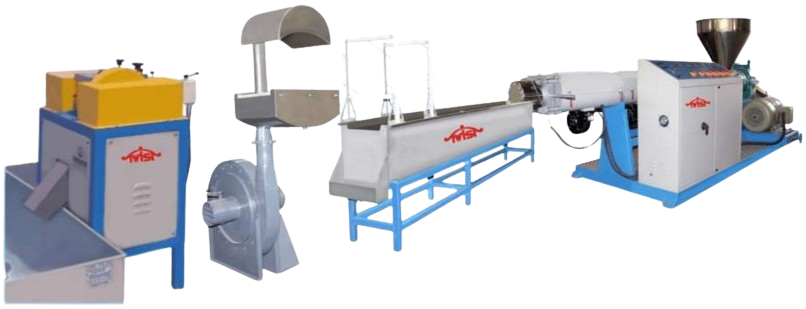

• Plant consisting of extruder, temperature control panel, die head, stainless steel water bath, and strand cutter (Pelletiser/Granulator).
  • High-speed mixer/Heater-cooler Mixer will be required for preparing PVC compound for feeding into the extruder for granulation.
MODELS TCG
65
TCG
75
TCG
90
TCG
100/150
TCG
100/180
TCG
100/220
TCG
125/180
TCG
125/220
TCG
150
Screw Dia. mm 65 75 90 100 100 100 125 125 150
Main Motor KW 11.0 18.5 30 37.0 45.0 55.0 45.0 55.0 75.0
*Max. Output Kg./ hr. 50-60 80-100 100-120 140-150 180-200 200-220 170-190 220-250 280-300
Cutter blades / load KW 6 / 0.75 6 / 0.75 8 / 1.0 8 / 1.0 8 / 1.0 8 / 1.0 12 / 1.5 12 / 1.5 16 / 2.0

125mm PVC compounding plant

Granulation, Compounding & Reprocessing Plant
