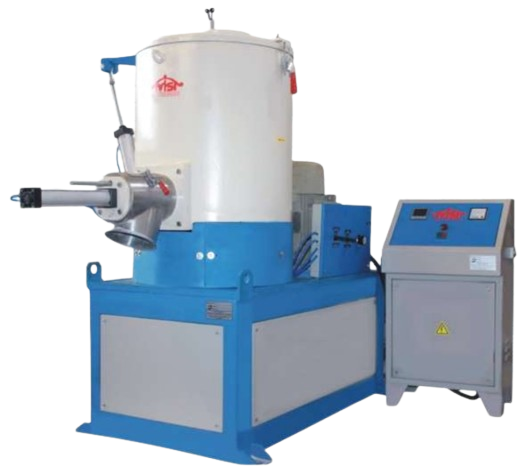

| MODELS | HM-35 (Lab) | HM-130 | HM-210 | HM-250 | HM-300 | HM-420 | HM-450 | HM-500 |
| Vessel volume in liters | 35 | 130 | 210 | 250 | 300 | 420 | 450 | 500 |
| * Mixing tool motor capacity with dual/ single speed motor |
3.3-7/ 3.7 KW | 12-15/ 15 KW | 22-30/ 30 KW | 32-37/ 37 KW | 45 KW | 55 KW | 75 KW | 90/110 KW |
| Mixer motor controls | Dual Speed/ Star Delta/ AC Vari Drive |
Dual Speed/ Star Delta/ AC Vari |
Dual Speed/ Star Delta/ AC Vari Drive |
Dual Speed/ Star Delta/ AC Vari Drive |
AC Vari Drive | AC Vari Drive | AC Vari Drive | AC Vari Drive |
| Max. Mixing capacity Kg per batch/ *Output Kg per hr. |
10/ 40-50 | 40/ 160-200 | 60/ 240-300 | 80/ 320-400 | 100/ 400-500 | 120/ 480-600 | 150/ 600-750 | 200/ 800-1000 |
- Option for Mixer with single speed motor and AC Variable speed drive is beneficial for electrical installation and equipments. It controls/ regulates starting heavy inrush current (6-7 times of full load current) of the motor. Resulting into increase in motor winding, bearings & vee belts life and reduce maintenance & electrical consumption.
- Motor capacities mentioned in above table are for making RPVC/ UPVC compound. Motor capacity will be higher than mentioned for making plasticized/ soft PVC compounds. Mixers for special applications are also available.

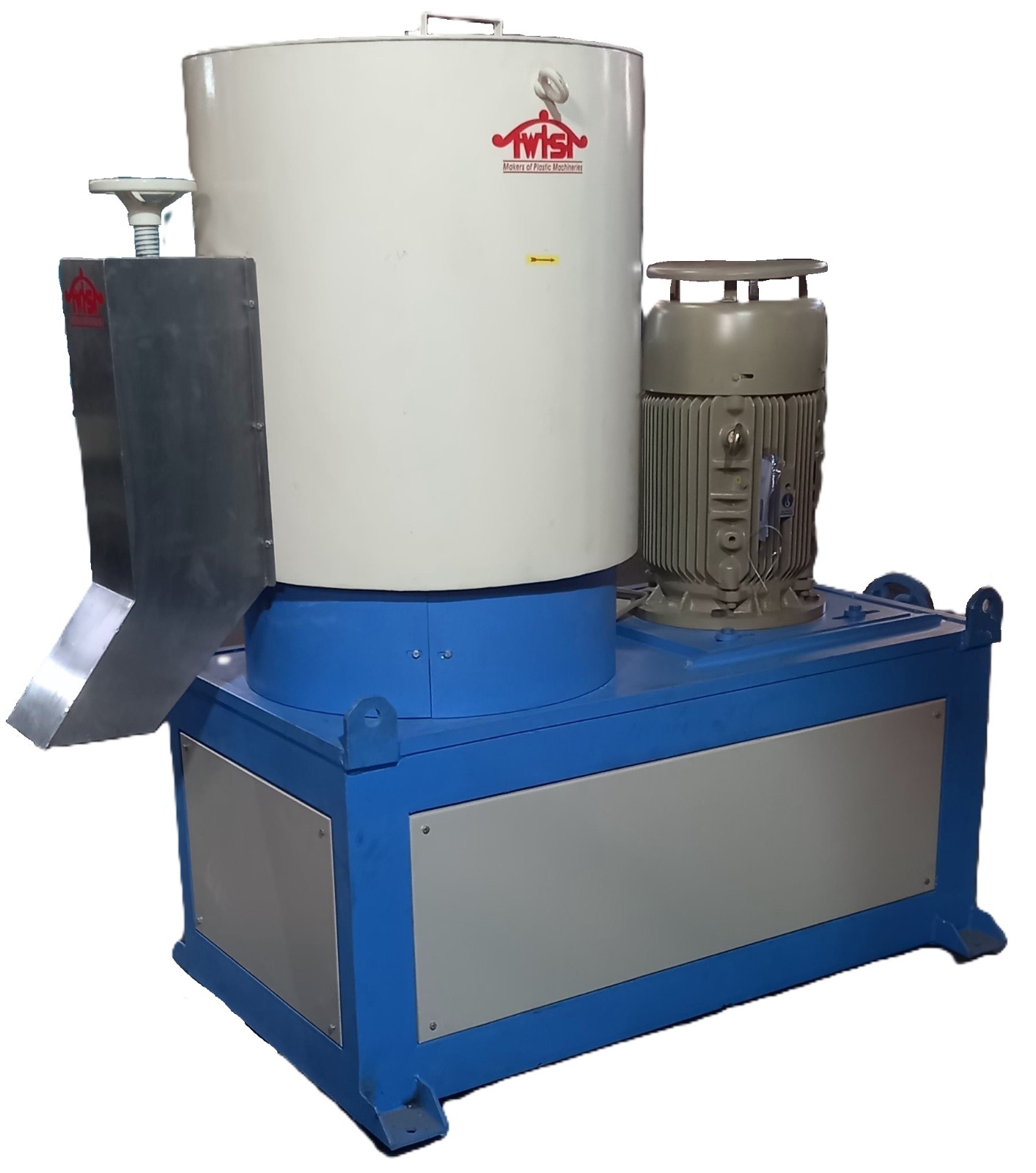

Granules mixer :
Mixers for granule mixing and heating are also available as under :
| MODELS | HGM-30 | HGM-60 |
| Vessel volume in litres | 60 Lts. | 130 Lts. |
| Mixing tool motor capacity | 10 HP | 20 HP |
| Max. Mixing capacity per batch | 30 Kg. | 60/ 80 Kg. |
| *Output Kg per hr. | 60-90 Kg | 120 Kg |
*Output depends on content of moisture
in the granule under mixing & drying and Climate/ season.
Granule heater Mixer vessel made from M.S.Thick sheet & blades
from alloy hardened flat.
