| Models | TGH-50 | TGH-65 | TGH-75 |
| Screw Diameter | 50 mm | 65 mm | 75 mm |
| L/D Ratio | 26/ 28 : 1 | 26/ 28 : 1 | 26/ 28 : 1 |
| Tube Size Range | 9 to 38 mm | 12 to 65 mm | 12 to 65 mm |
| Extruder Motor | 7.5 KW | 11.0 KW | 15.0 KW |
| Tube Puller Motor | 0.75 KW | 0.75 KW | 0.75 KW |
| *Output Kg./Hour | 28-32 | 50-60 | 70-85 |
| Total Connected Load | 14.5 KW | 20.5 KW | 24.5 KW |
Coated, Zebra and Petrol Garden Pipes can be made.

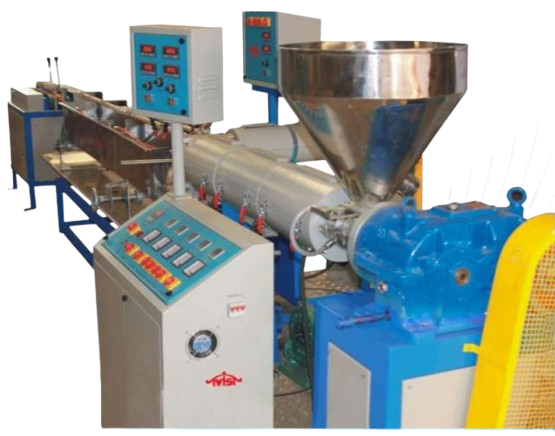

High Speed Mixer will be required for making PVC compound to feed the extruder of the PVC garden pipe Plant.
