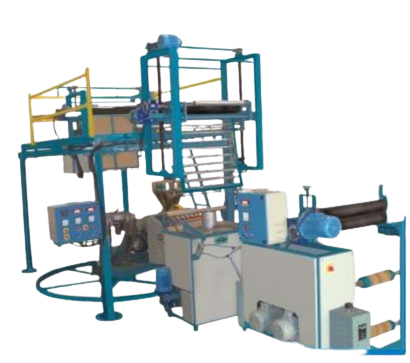

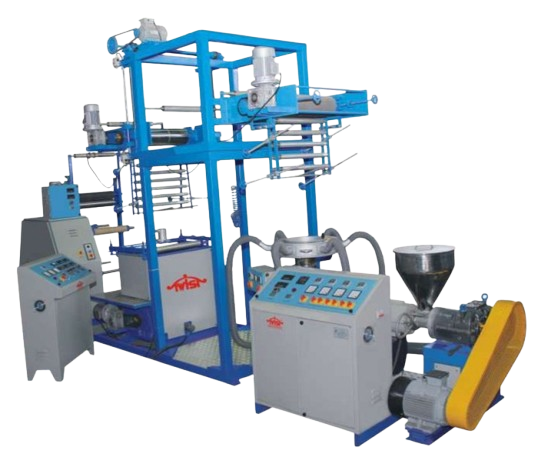

Plant with Rotating Die
Plant With Rotating Extruder Plate Farm
| Models | THS-35 | THS-38 | THS-50 | THS-65 |
| Screw Diameter | 35 mm | 38 mm | 50 mm | 65 mm |
| Screw L/D Ratio | 23:01 | 23:01 | 23:01 | 23:01 |
| Extruder Motor KW | 3.7 KW | 5.0 KW | 7.5 KW | 11.0 KW |
| Out put Kg/Hr | 15-18 | 18-22 | 28-32 | 35-50 |
| Primary Take up motor KW | 0.33 | 0.33 | 0.33 | 0.75 |
| Secondary Take up motor KW | 0.75 | 0.75 | 0.75 | 1.5 |
| Orientation Unit Heating load | 9 KW | 9 KW | 12 KW | 15 KW |
| Centre type Winder stations | 04 | 04 | 04 | 04 |
| Total connected load | 21.0 kW | 22.6 KW | 31.0 kW | 41.0 kW |
- Compact and user-friendly operations.
- Elegant look.
- Rotating 360 degree Die & Air ring.
- Separate control panel at operating level for frequently required operations.
- Auto speed synchronism among all variable speed motors.
- Balanced electrical & heating loads on 3 Phases.
- Motorized nip roller height adjustments for both take-offs.
- Two or Four station winder.
- Oscillated extruder model is also available.
- LDPE shrink film plants are also available.
