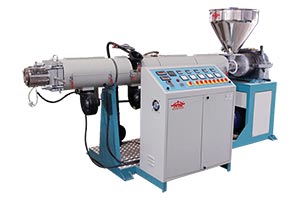

Extruders with vent are equipped with vent hole in the barrel of the extruder. Connecting bracket is mounted on vent hoel. It is connected with vacuum pump through the hose.

  • Extruders with vent are to extract/ remove moisture and impure gases from the polymers under process.
  • Extruders with vent are available for all models of plants (compounding, granulation and reprocessing) shown in the tables at EXTRA COST.

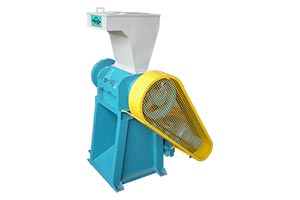

Plastic Scrap Grinder

Models TSG-12 TSG-15 TSG-18 TSG-24 TSG-30
Rotor Type Steps/ solid Steps/ solid Steps Type Steps Type Steps Type
Rotating blades 9/ 3 Nos. 9/  4  Nos. 9 / 4 Nos. 9 / 4 Nos. 9 / 4 Nos.
Stationery blades 2 Nos. 2 Nos. 2 Nos. 2 Nos. 2 Nos.
Motor capacity KW 5.0 or 7.5 9.3 or 11.0 15.0 18.5 22.0

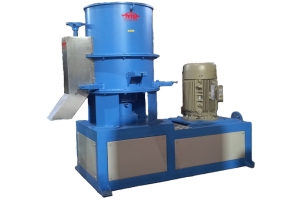

Agglomerater

Models AG-60 AG-150 AG-200 AG-350
Rotating blades 4 Nos. 4 Nos. 6 Nos. 8 Nos.
Stationery blades 4 Nos. 4 Nos. 6 Nos. 8 Nos.
Motor capacity KW 3.7 22.0 30.0 75.0
*Production Kg/hr 8-12 50-70 85-100 175-200
