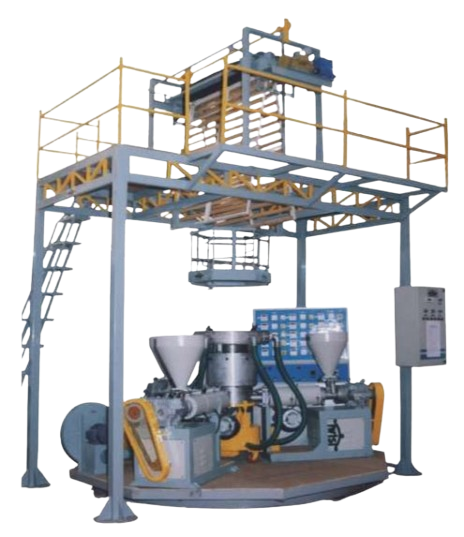

Plants having extruders with a helical gearbox on a rotating plate farm with an auto reverse-forward mechanism, temperature & control panel, and blower. Take-up unit rollers are rotated by variable speed motors coupled with a reduction gearbox. Spiral-type die head with die sizes suitable for the required film layflat width. Surface type or center type winders with trimming knives are supplied with the plant.

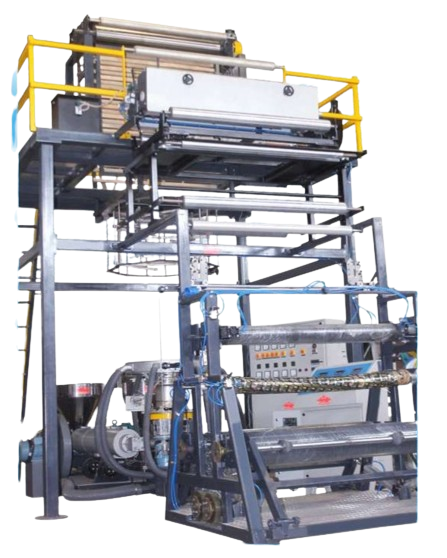

Three layer (A-B-A) sandwich film making plant with two extruders also available.
| Models | THC 265 | THC 350 | TH-ABA 65/50 |
| Screw Dia. mm | 2×65 | 3×50 | 50/65 |
| Main Motor KW | 2×15 | 3×11 | 11.0×15.0 |
| Die type | Spiral 2L | Spiral 3L | Spiral 3L |
| Layflat width mm | 1050 | 1850 | 1000 |
| *Max Output Kg./ hr. | 100-120 | 160-180 | 90-100 |
| Nip Roller width mm | 1200 | 2000 | 1300 |
| Winder Type | Center | Center | Surface |
| Connected Load KW | 54.5 | 63.00 | 63.00 |
